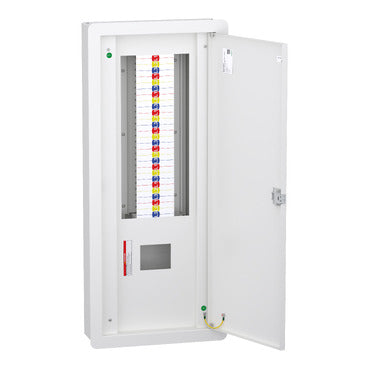

VTPN Distribution board, DBSeT, 54 module, 250A NSX incomer, IP41, Flush

Experience streamlined power management with the DBSet 54 module VTPN distribution board designed for flush mounting. The enclosure material is painted sheet steel thickness of 1.2mm. It comes with a plain sheet steel door. 250A NSX incomer provision is available. Its current rating is 250A and insulation voltage is 500V. The rated short-time withstand current is 25kA for 0.3s, and the Uimp rated impulse withstand voltage is 6kV. The color of the distribution board is white (RAL 9003). The degree of protection is IP41 and IK degree of protection is IK08. This distribution board is complies with 61439-1 and IEC 61439-3 standard.
