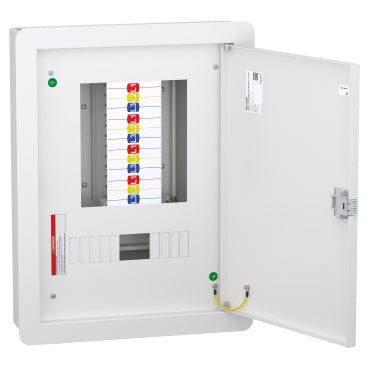

VTPN Distribution board, DBSeT, 24 module, 125A Modular incomer, IP41, Surface

Experience streamlined power management with the DBSet 24 module VTPN distribution board designed for surface mounting. The enclosure material is painted sheet steel thickness of 1.2mm. It comes with a plain sheet steel door. 125A Modular incomer provision is available. Its current rating is 125A and insulation voltage is 500V. The rated short-time withstand current is 17kA for 0.25s, and the Uimp rated impulse withstand voltage is 6kV. The color of the distribution board is white (RAL 9003). The degree of protection is IP41 and IK degree of protection is IK08. This distribution board is complies with 61439-1 and IEC 61439-3 standard.
