ISOLATOR SWITCH ACTI-9 3P 63A DIN RAIL TYPE ISW

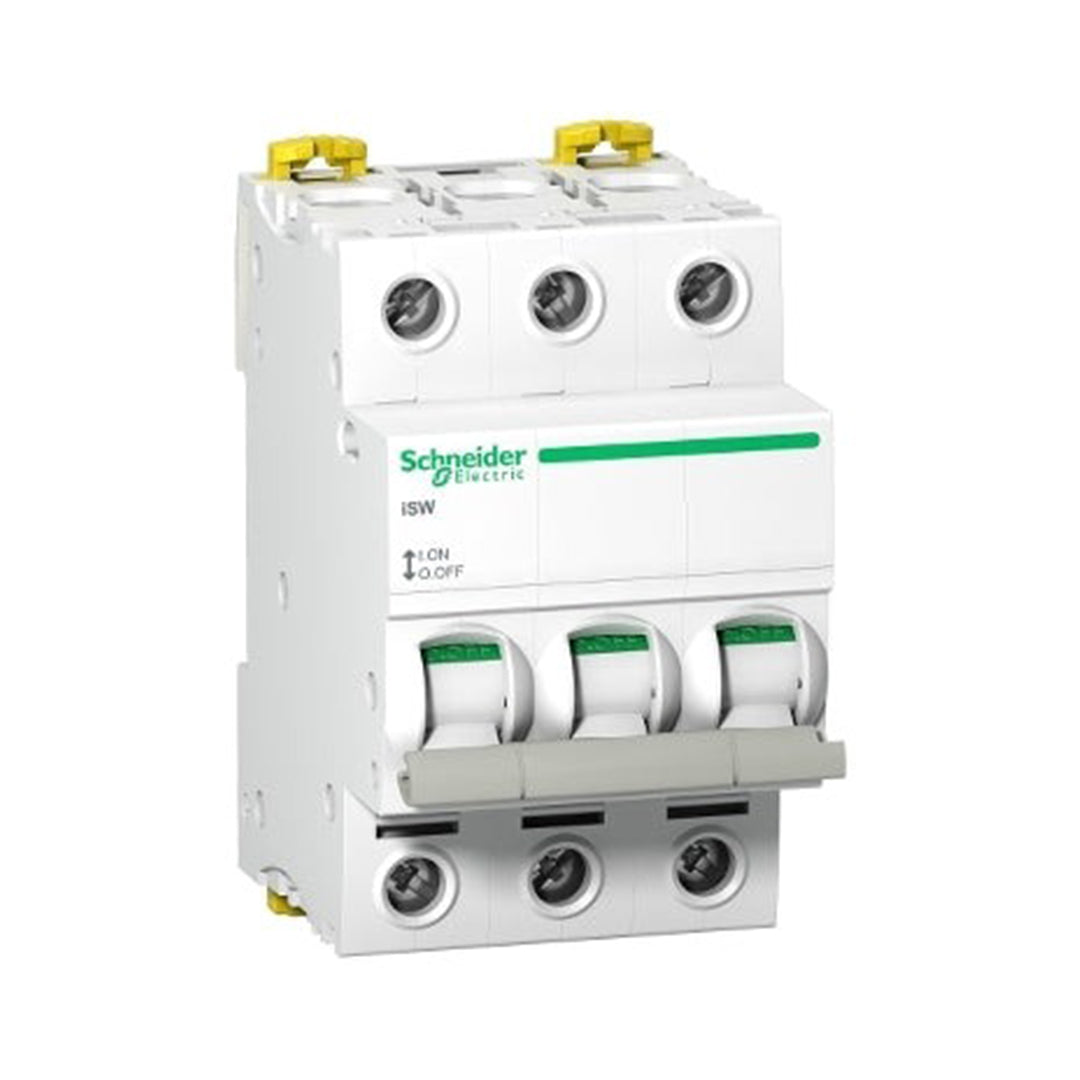

This Acti9 iSW product is a modular and reliable switch disconnector. it is a 3P, rated current is 63A, and operating voltage is 415VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25çC to +60çC. The storage temperature is -40çC to +85çC. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product complies with EN/IEC 60947-3 standard.
