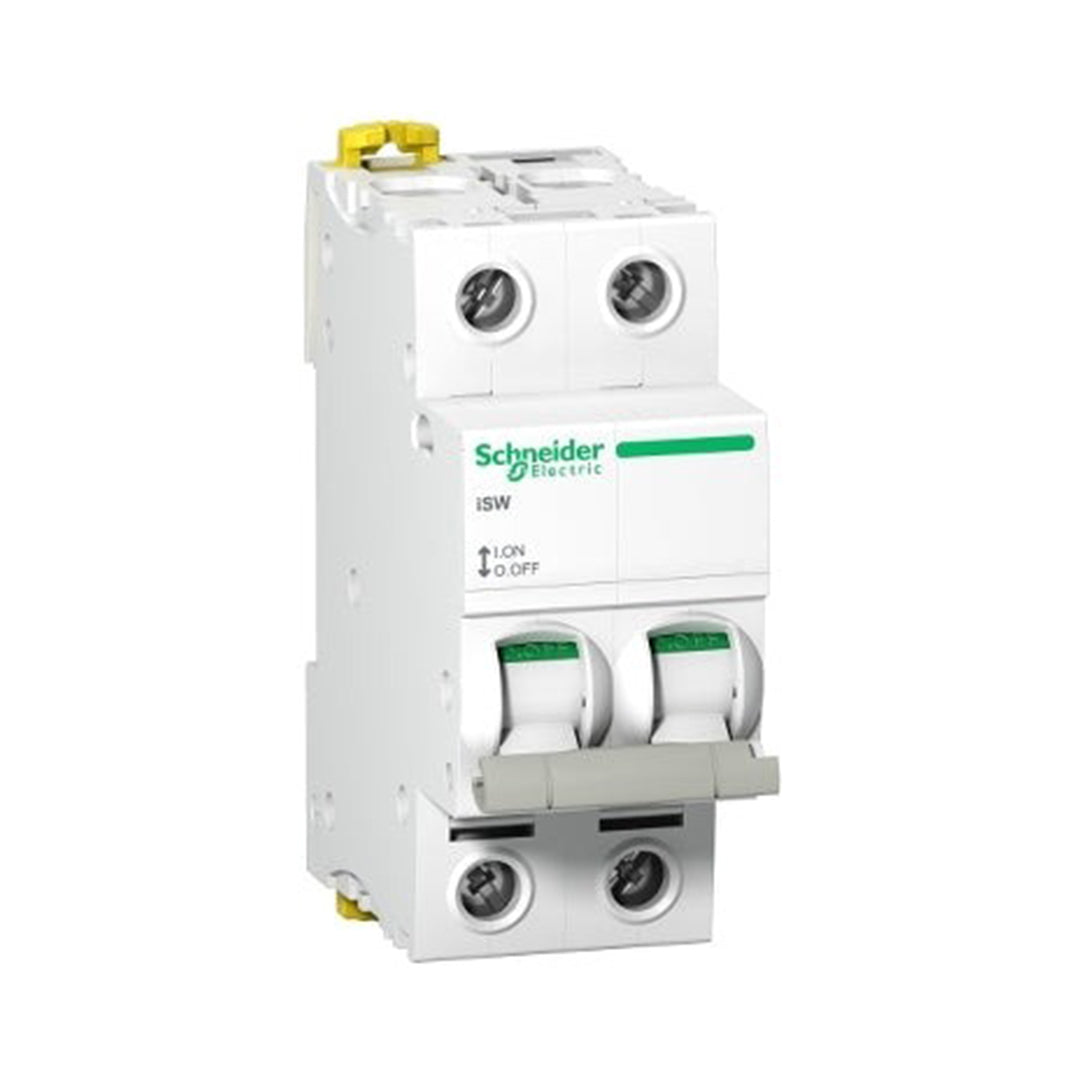

ISOLATOR SWITCH ACTI-9 2P 40A DIN RAIL TYPE ISW

This Acti9 iSW is a modular and reliable switch disconnector. it is a 2P, rated current is 40A, and operating voltage is 415VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25çC to +60çC. The storage temperature is -40çC to +85çC. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
