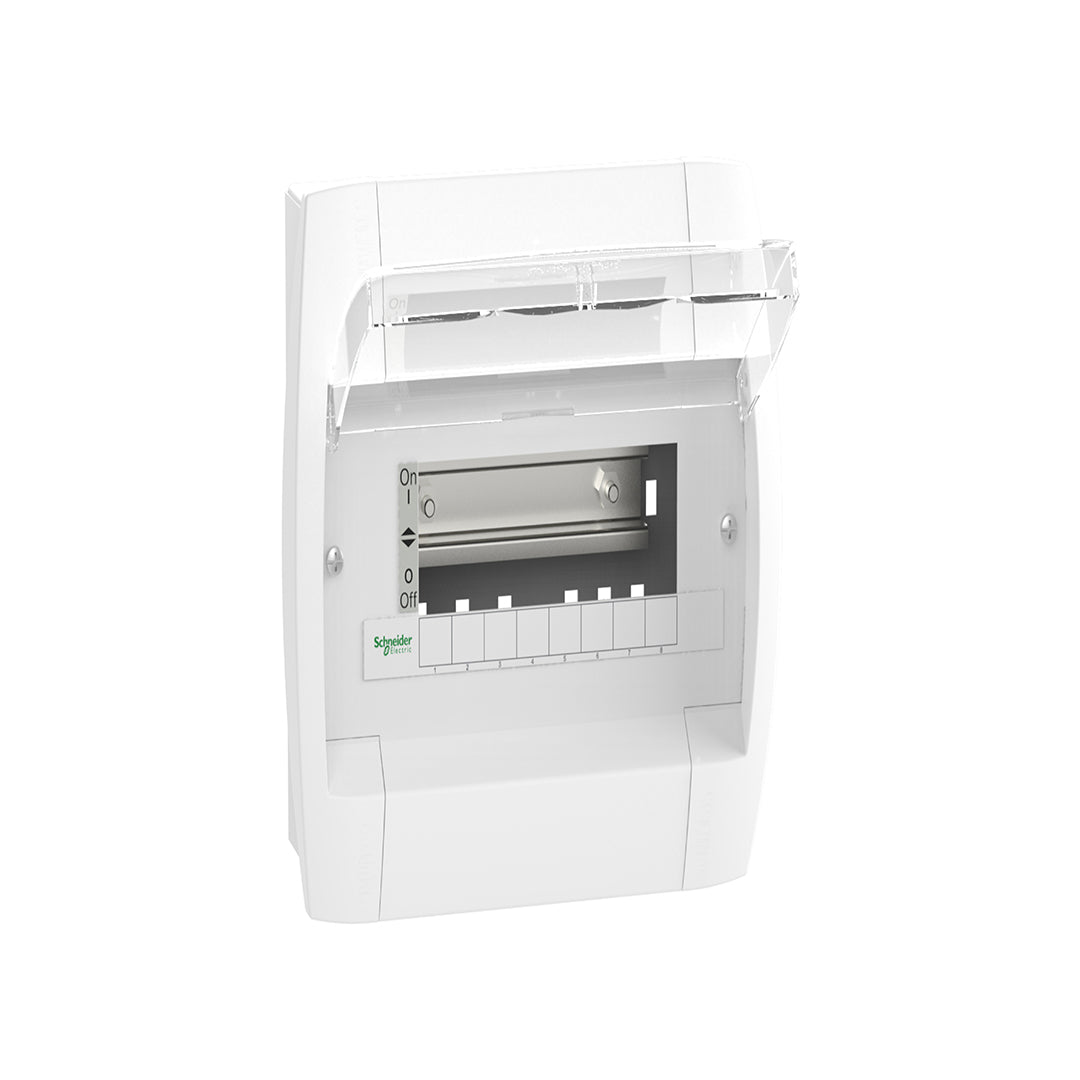

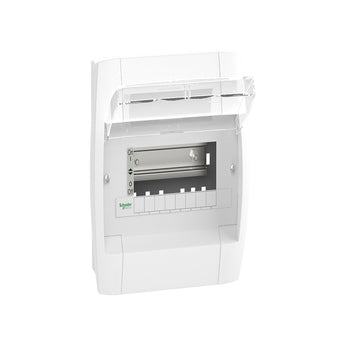

Single phase distribution board, Acti9 Disbo, row type, 8 ways, flush mount

This Acti9 Disbo product is suitable for flush and surface mounting, Single phase distribution board. The rated current can be up to 100A.The number of ways is 8 and 1 Row. enclosure, DIN rail, earthing bar & Neutral bar are provided. The dimensions are (W) 239mm x (H) 73mm x (D) 208mm. The color of the consumer unit is white (RAL9003).The enclosure material is made of electro galvanised steel. The degree of protection is IP40 conforming to IEC 60529. This enclosure is Compliant with IEC 61439-3 standards.
