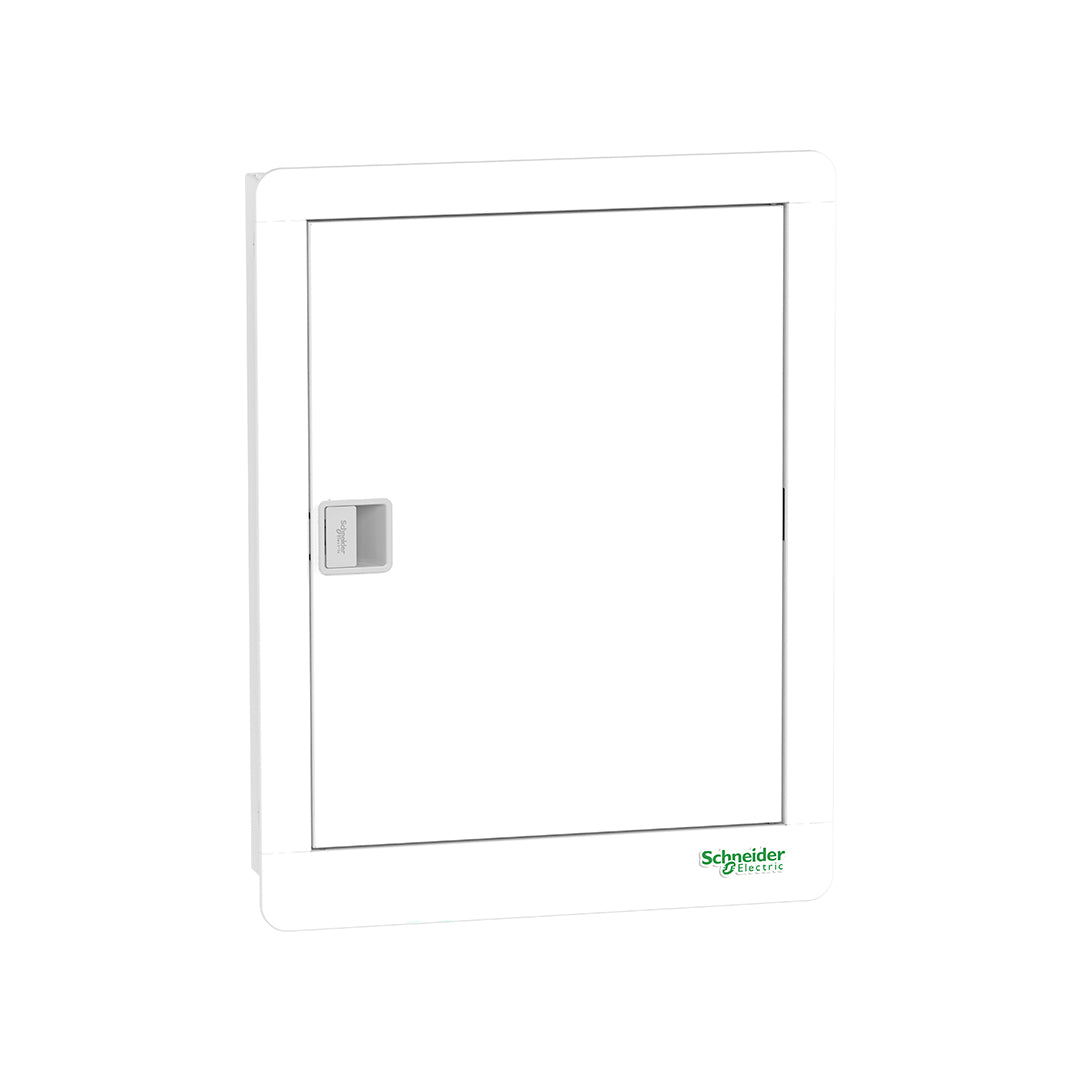

Distribution board, Acti9 Disbo, 12 ways, 100A isolator provision, surface mount

This Acti9 Disbo product is a surface mounted Vertical TPN distribution board with 100A isolator incomer provision. The rated current can be up to 100A.The number of ways is 12. [Icw] rated short-time withstand current 25kA at 0.3s. [Ipk] rated peak withstand current 52.5kA. enclosure,pan assembly,earthing bar, neutral bar are provided. The dimensions are (W) 440mm x (H) 568.3mm x (D) 139mm. The color of the consumer unit is white (RAL9003).The enclosure material is made of electro galvanised steel. The degree of protection is IP40 conforming to IEC 60529. This enclosure is certified with IEC 61439-3 standards.
