MCB, 1P, 80A, 10KA, 400V, 50/60HZ

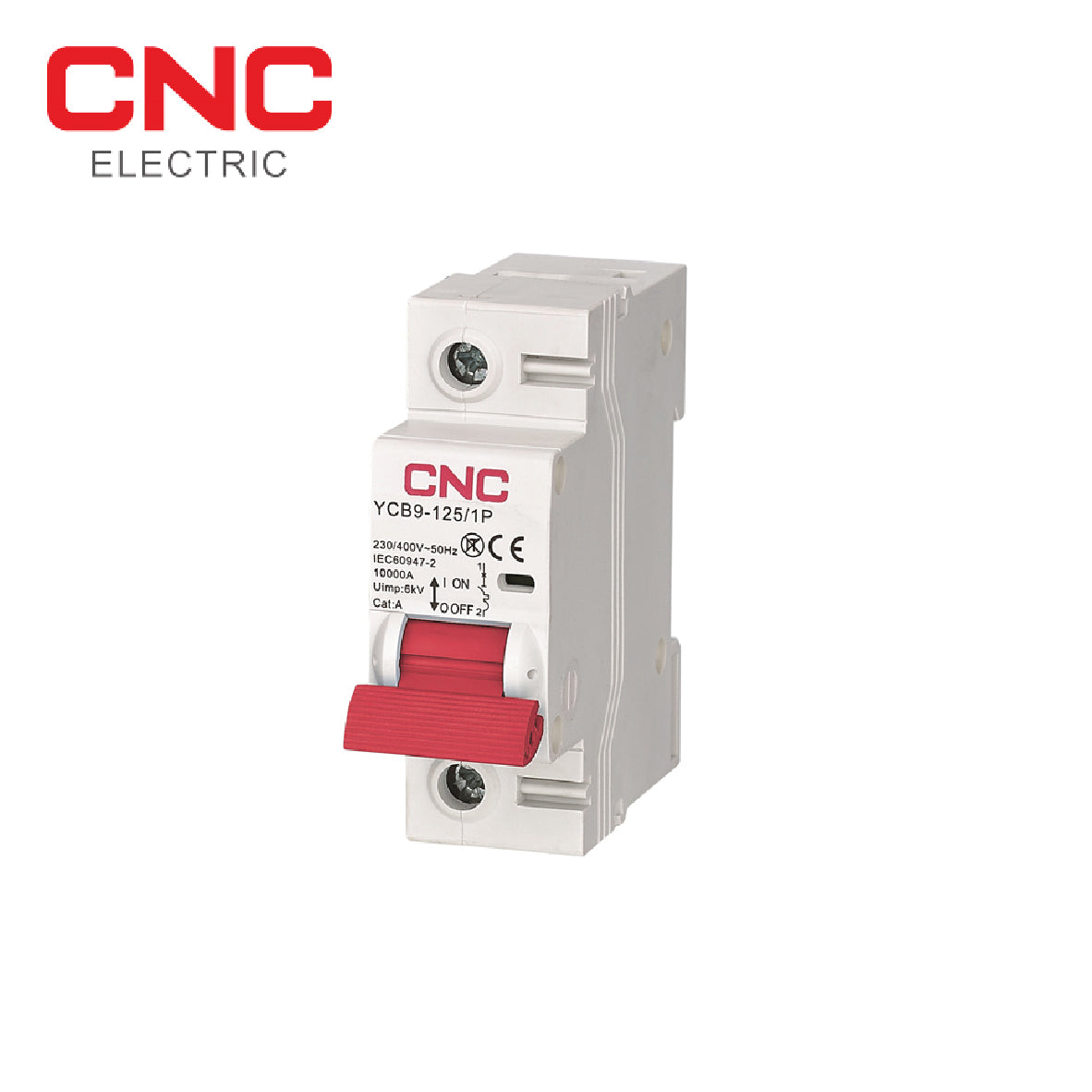

The YCB9-125 is a miniature circuit breaker (MCB) from CNC Electric, engineered to provide overload and short-circuit protection in various settings, including residential, commercial, and industrial environments. It accommodates rated currents of 63A, 80A, 100A, and 125A, with configurations available in 1P, 2P, 3P, and 4P. The breaker operates at a rated voltage of 230/400V AC and a frequency of 50/60 Hz, featuring a breaking capacity of 6kA. It offers tripping characteristics in Types B (3-5 In), C (5-10 In), and D (10-20 In) to suit different application requirements. Designed for durability, the YCB9-125 has an electrical life of up to 1,500 operations and a mechanical life of up to 10,000 operations. The device is IP20 rated, ensuring protection against solid objects larger than 12.5 mm, and is suitable for operating temperatures ranging from -5ÁC to +40ÁC. Installation is facilitated by a fast clip system compatible with DIN rail EN 60715 (35mm), allowing connections from both the top and bottom for flexible wiring arrangements.
